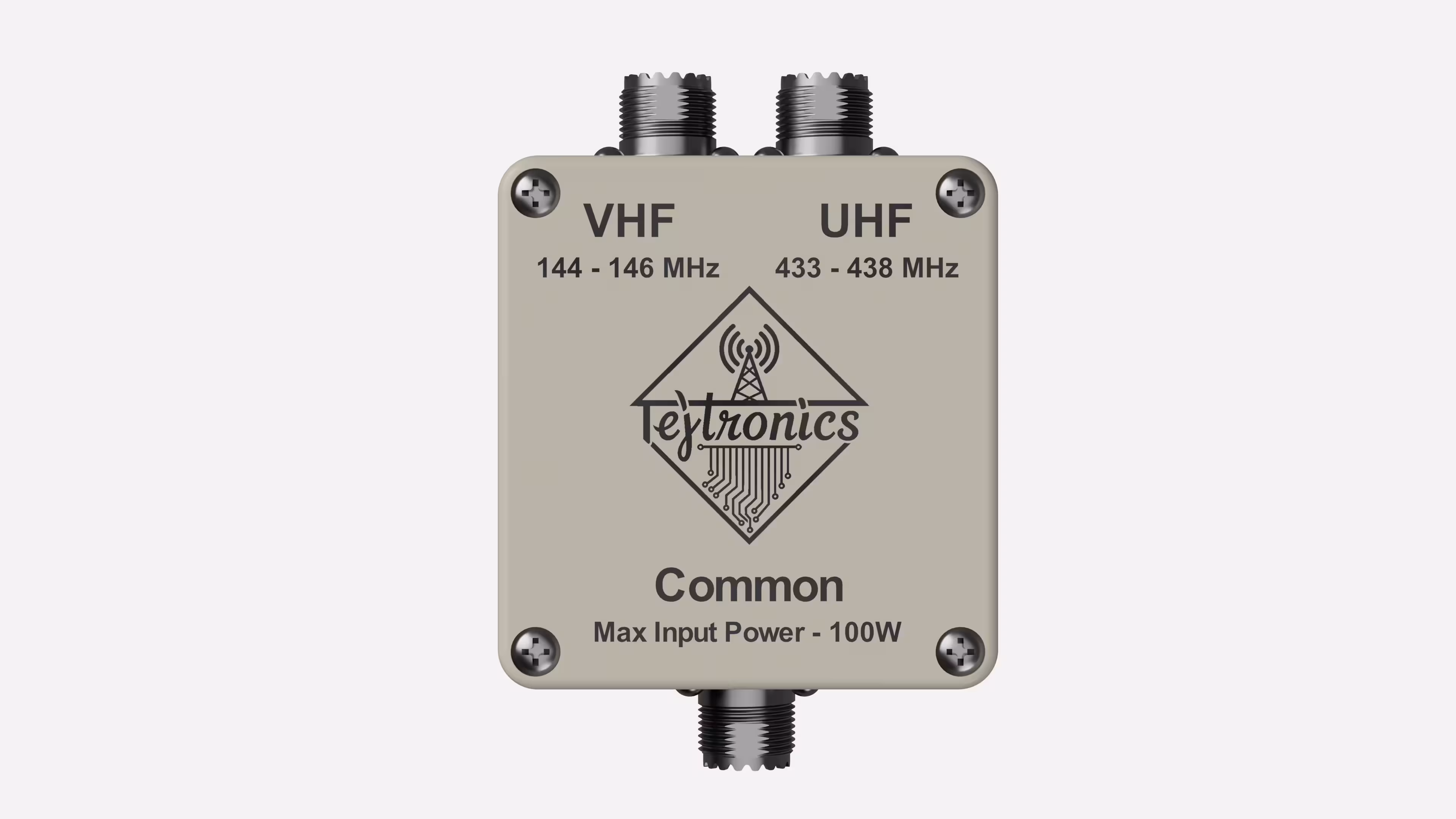

VHF - UHF Diplexer
VHF/UHF Diplexer for Simultaneous Dual-Band Operation
This diplexer combines separate VHF and UHF antenna inputs into a single RF output, allowing both bands to be used concurrently on one radio.
In typical setups, monoband antennas require individual feedlines and manual switching. This diplexer eliminates that requirement by internally separating and combining frequency bands, enabling parallel operation.
Key Use Cases:
Satellite communication (simultaneous VHF uplink / UHF downlink)
Crossband repeater operation
Dual-band contesting setups
Benefits:
Eliminates antenna switching
Reduces feedline complexity
Enables simultaneous multi-band operation
SKU: TT-RF-FL-002
Price: ₹6000
Technical Specifications
- Type
- lowpass - highpass
- Enclosure
- IP 69 rated cast aluminum
- Max Power
- 100W
- Connector type
- SO 239
- Lowpass cut off Frequency
- 150 MHz
- HighPass cut off Frequency
- 430 MHz
- Isolation between UHF and VHF
- > 40 dB
- Isolation between VHF and UHF
- > 40 dB
