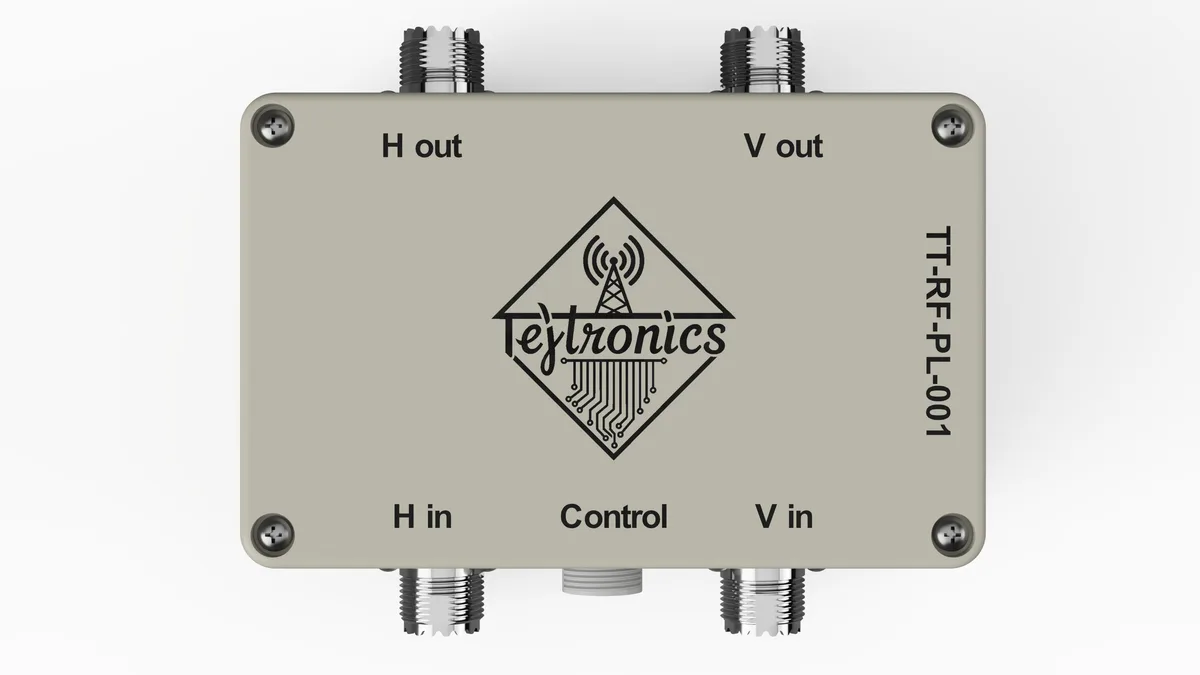

VHF Polarizer
The TT-RF-PL-001, VHF Phase Shifter Board is a precision RF module designed to provide controllable phase adjustment of VHF signals. The board is intended for generating vertical(V), horizontal (H), Right Circularly Polarizer (RHCP) and Left Circularly Polarized (LHCP) signals
SKU: TT-RF-PL-001
HSN: 8529 9090
Contact Tejtronics for pricing.
Key Features
- Industry Standard RF Compliance - RoHS and CE Conformity
- Low insertion loss
- High signal integrity
- Excellent Impedance matching
- Chassis-mount enclosure
- Ingress Protection - IP69
- Housing Material - Aluminium Alloy (6061)
Technical Specifications
- Impedance
- 50
- Operating frequency range
- 144-146 MHz
- Insertion loss
- < 0.5 dB
- Input return loss
- <-10dB
- Device operating voltage
- 13.8 V
- Connector Type
- SO-239
- Weight
- 500 gm
