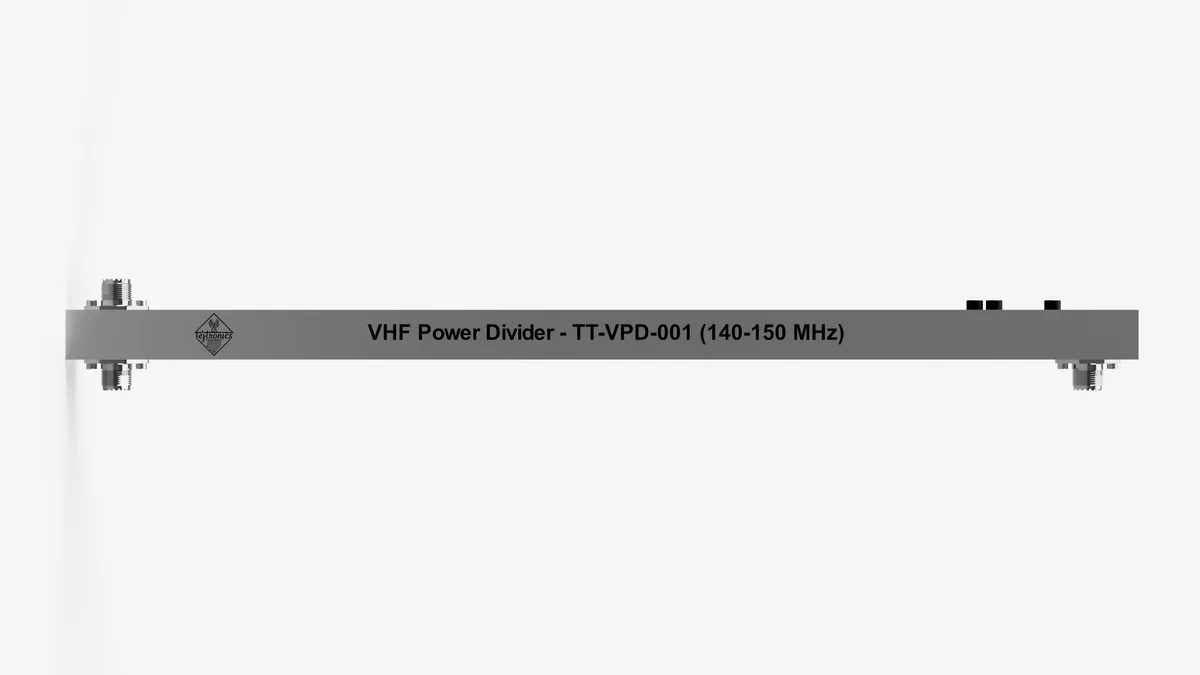

VHF Power Divider
The TT-VPD-001 VHF Power Splitter/Combiner is a broadband, low-loss passive RF device designed for efficient power splitting and signal combining in VHF communication systems. When used as a power splitter, it divides a single RF input into two equal-amplitude output signals while maintaining excellent amplitude and phase balance. When used as a power combiner, it combines two RF signals into a common output with high isolation between the input ports, minimizing interaction between connected transmitters or receivers.
SKU: TT-VPD-001
HSN: 85437099
Contact Tejtronics for pricing.
Key Features
- Industry Standard RF Compliance - RoHS and CE Conformity
- Low Insertion Loss
- High port-to-port isolation
- Excellent impedance matching across the operating frequency range
- Aluminium Tube Enclosure
- Ingress Protection - IP69
- Housing Material - Aluminium Alloy (6061)
Technical Specifications
- Impedance
- 50 Ω
- Operating frequency range
- 144-146 MHz
- Input return loss
- <-10dB
- Insertion loss
- < 0.5 dB
- Connector Type
- SO-239
- Weight
- 200 gm
