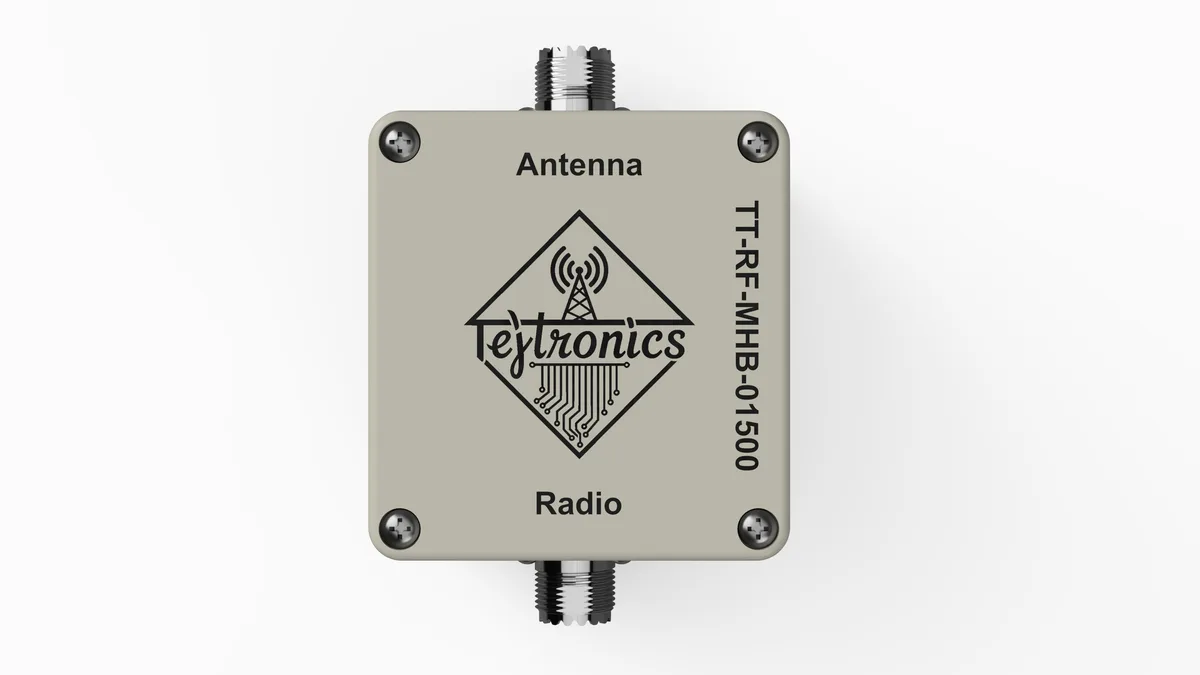

UHF Masthead Preamp
The TT-RF-MHB-01500, UHF Masthead Preamplifier is a low noise figure,low thermal noise LNA designed to improve the sensitivity of UHF receiving systems by amplifying weak signals directly at the antenna before transmission through the coaxial feeder. This gives an improved signal to noise performance especially with long cable runs.
SKU: TT-RF-MHB-01500
HSN: 85437069
Contact Tejtronics for pricing.
Key Features
- Industry Standard RF Compliance - RoHS and CE Conformity
- Low thermal noise LNA
- Low noise figure
- Chassis-mount enclosure
- Ingress Protection - IP69
- Housing Material - Aluminium Alloy (6061)
Technical Specifications
- Impedance
- 50 Ω
- Operating frequency range
- 300-500 MHz
- Gain
- 12dB
- Input return loss
- <-10dB
- Input TX sensitivity
- > 0 dBm
- Device operating voltage
- 13.8 V
- Connector Type
- SO-239
- Weight
- 400 gm
