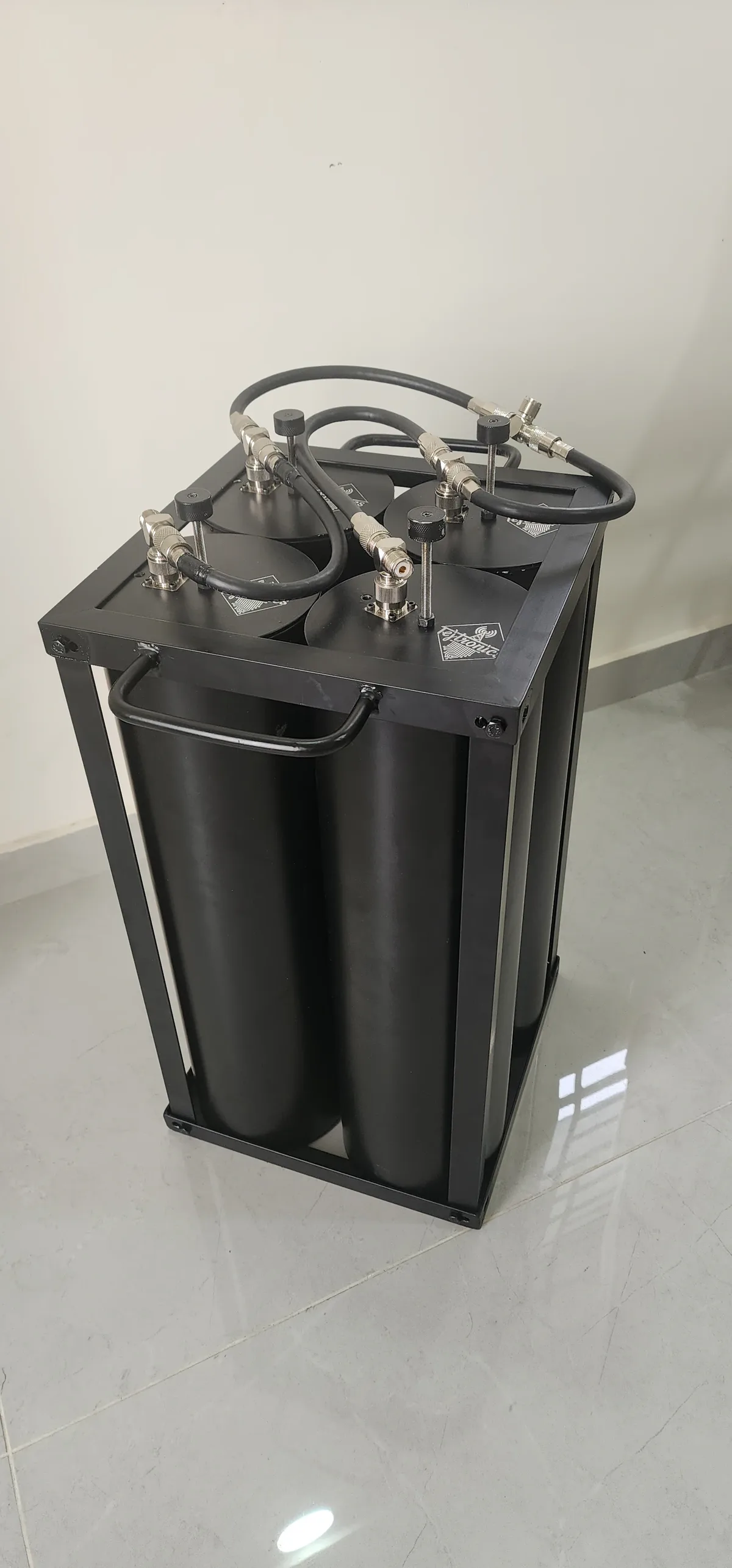

Cavity Filter
High-Q RF cavity filter delivering excellent adjacent-channel rejection and improved receiver selectivity for demanding RF installations.
We have 2 Variants :
- 4 cylinder variant - 2 cylinders in pass band + 2 cylinders in stop band
- 6 cylinder variant - 3 cylinders in pass band + 3 cylinders in stop band
SKU: TT-RF-CF-014
HSN: 85291090
Contact Tejtronics for pricing.
Key Features
- Built in high voltage capacitor for tuning
- A mirror-finished, chemically treated interior for improved conduction
- A high-temperature powder-coated exterior
- Integrated handles for easier transportation and installation
Technical Specifications
- Width
- 31 cm
- Length
- 31 cm
- Height
- 55 cm
- Weight
- 7 Kg
- Material
- AL 6061
- Connector type
- SO-239
- Impedance
- 50 Ohms
- Input VSWR
- 1.35:1
- Frequency range
- 100 MHz to 300 MHz
- Max input power in passband (FM)
- 400W
- Passband Insertion Loss
- < 1.1 dB
- Stopband Insertion Loss
- ~ 60 dB
Product Variants
Cavity Filter - 4 Cylinders
SKU: TT-RF-CF-014
- Passband Insertion Loss
- < 1.1 dB
- Stopband Insertion Loss
- ~ 60 dB
Cavity Filter - 6 Cylinders
SKU: TT-RF-CF-015
- Passband Insertion Loss
- < 1.1 dB
- Stopband Insertion Loss
- ~ 80 dB
