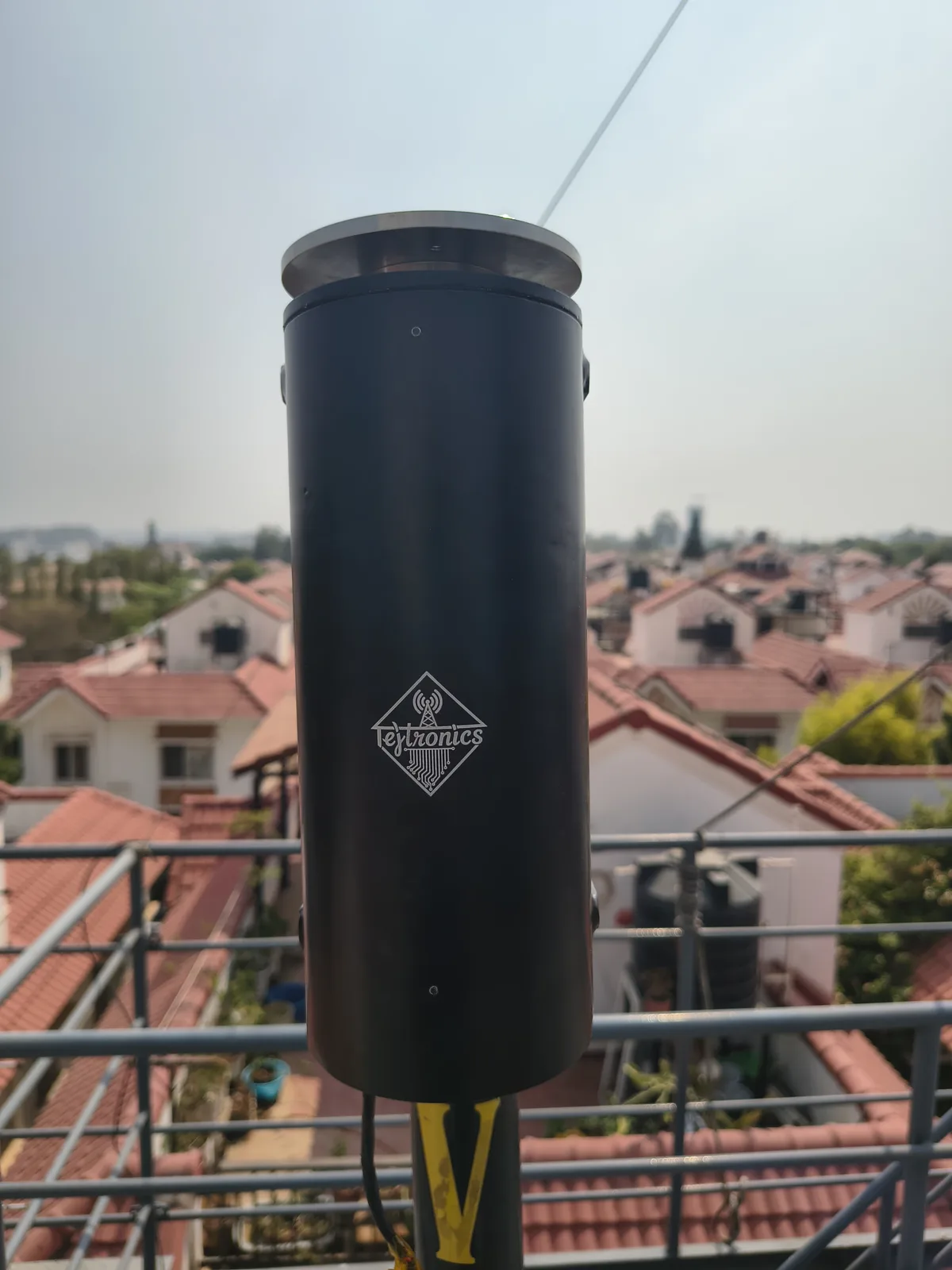

Antenna Rotator

The Tejtronics Antenna Rotator combines substantial mechanical capacity, high-resolution positioning and integrated digital control in a rugged outdoor platform. With 2100 kgf·cm rotational torque, a 300 kg continuous vertical-load rating and native USB-C connectivity, it is designed for amateur-radio stations, automated satellite tracking, research facilities and professional RF installations.

SKU: TT-RF-AR-013

HSN: 85291090

Price: ₹60000

Key Features

• High-torque drive delivering 2100 kgf·cm rotational torque and 1125 kgf·cm braking torque
• Supports a 300 kg continuous vertical load, 800 kg momentary vertical load and antenna K-factor of 300
• Fine digital positioning with resolution below 0.1° and angular control increments of 0.01°
• Software-defined continuous rotation with no internal mechanical end stop and a 70.6-second full-rotation time
• Integrated thrust bearing transfers axial load from the drive shaft to the enclosure for improved mechanical reliability
• Body-integrated jaw clamp supports mast diameters from 1 to 2 inches
• Full digital control with native USB-C connectivity for computer operation and custom-interface development
• Out-of-the-box SatPC32 support for automated antenna tracking
• Modular architecture supports future elevation control and antenna polariser integration
• IP68-rated enclosure for dependable long-term outdoor operation
• Operates from a standard 13.8 V DC supply with load-dependent current consumption up to 5 A

Technical Specifications

Control type

Full digital control

Mast diameter

1 inch to 2 inch

Resolution

< 0.1 degree

Angular resolution

0.01 degrees

Max current

Load dependent max 5 A

Supply voltage

12 to 15V DC

Braking torque

1125 Kgf.cm

Rotational torque

2100 Kgf.cm

Rotation speed

0.85 RPM

Rotation Range

Software Defined, no physical limitation

Continuous Vertical Load

300 Kg

Momentary Vertical Load

800 Kg

Antenna K-Factor

300

Full Rotation Time

70.6 secs
