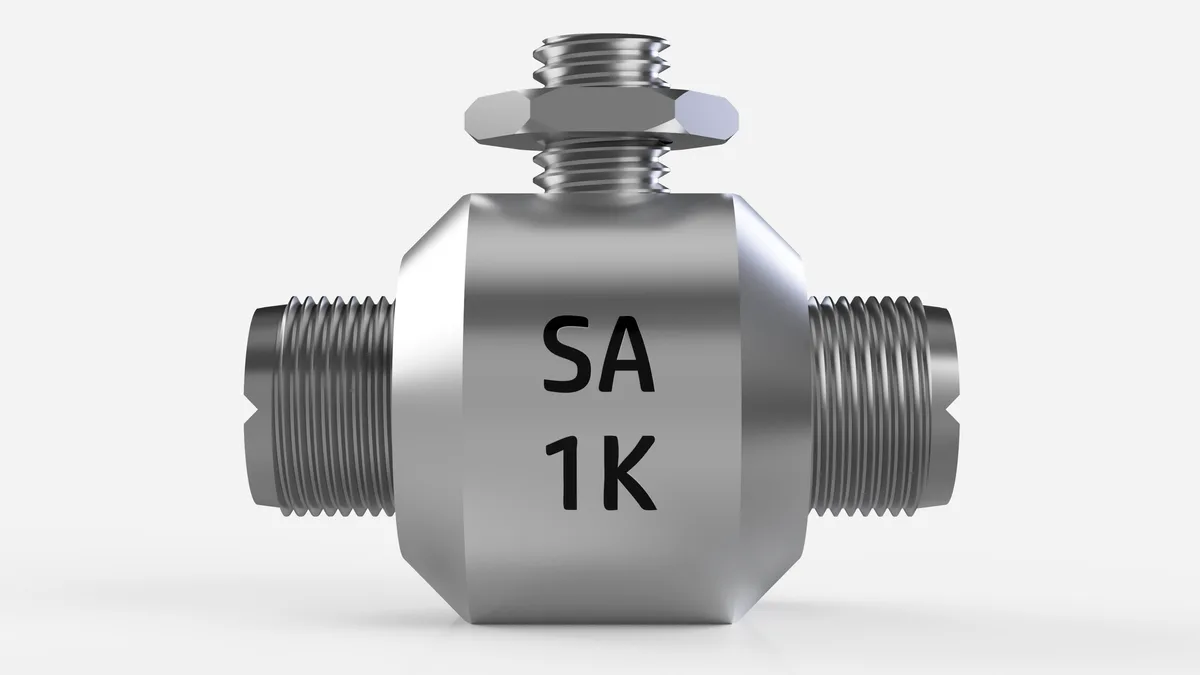

Surge Arrestor
Coaxial RF and lightning surge arrestor providing equipment protection without degrading RF performance, suitable for up to 1KW.
SKU: TT-RF-SA-018
HSN: 85363000
Price: ₹3000
Key Features
- Advanced GDT technology for superior surge protection without impacting SWR
- Direct panel mount and earth strip connections possible
- Suitable for HF to UHF operations
- Indigenous Make-in-India product with full local manufacturing
Technical Specifications
- Weight
- ~50g
- Mounting
- M8 stud
- Dimensions
- 90mm x 36mm x 65mm
- Response Time
- <25ns
- Max capacitance
- <1pF
- Operating Temperature
- -40°C to +80°C
- Voltage Protection Level
- ≤1000V
- Impulse Discharge Current
- 1000A
- Impulse Spark Over Voltage
- 1400V
- Recommended Max RF power with max SWR before sparking
- 1.20KW (SWR 1:1), 900W (2:1), 800W (3:1)
Product Variants
Surge Arrestor - 40W
SKU: TT-RF-SA-015
- Weight
- ~50g
- Mounting
- M8 stud
- Dimensions
- 90mm x 36mm x 65mm
- Response Time
- <25ns
- Max capacitance
- <1.5pF
- Operating Temperature
- -40°C to +80°C
- Voltage Protection Level
- ≤90V
- Nominal Discharge Current
- 5000A
- Impulse Spark Over Voltage
- Recommended Max RF power with max SWR before sparking
- 60W (SWR 1:1), 40W(2:1), 20W(3:1)
Surge Arrestor - 100W
SKU: TT-RF-SA-016
- Weight
- ~50g
- Mounting
- M8 stud
- Dimensions
- 90mm x 36mm x 65mm
- Response Time
- <25ns
- Max capacitance
- <1.5pF
- Operating Temperature
- -40°C to +80°C
- Voltage Protection Level
- ≤350V
- Impulse Discharge Current
- 5000A
- Impulse Spark Over Voltage
- 1000V
- Recommended Max RF power with max SWR before sparking
- 150W (SWR 1:1), 80W(2:1), 50W(3:1)
Surge Arrestor - 400W
SKU: TT-RF-SA-017
- Weight
- ~50g
- Mounting
- M8 stud
- Dimensions
- 90mm x 36mm x 65mm
- Response Time
- <25ns
- Max capacitance
- <1.5pF
- Operating Temperature
- -40°C to +80°C
- Voltage Protection Level
- ≤800V
- Impulse Discharge Current
- 5000A
- Impulse Spark Over Voltage
- 1200V
- Recommended Max RF power with max SWR before sparking
- 450W (SWR 1:1), 300W (2:1), 200W (3:1)
Surge Arrestor - 1KW
SKU: TT-RF-SA-018
- Weight
- ~50g
- Mounting
- M8 stud
- Dimensions
- 90mm x 36mm x 65mm
- Response Time
- <25ns
- Max capacitance
- <1pF
- Operating Temperature
- -40°C to +80°C
- Voltage Protection Level
- ≤1000V
- Impulse Discharge Current
- 1000A
- Impulse Spark Over Voltage
- 1400V
- Recommended Max RF power with max SWR before sparking
- 1.20KW (SWR 1:1), 900W (2:1), 800W (3:1)
